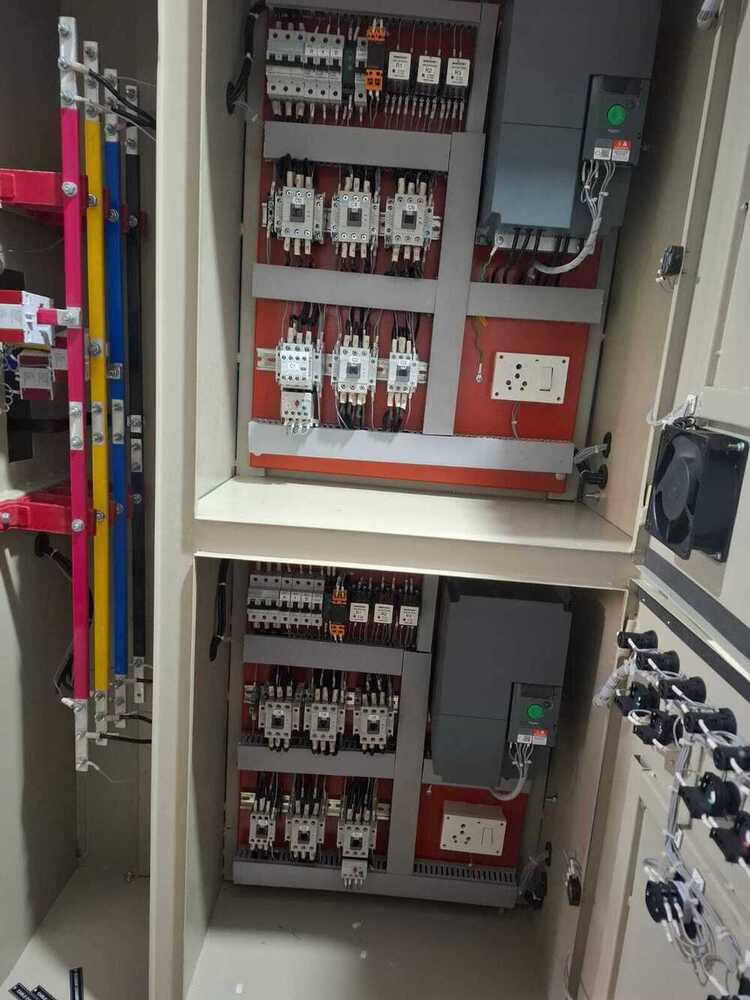

5 HP Three Phase Star Delta Motor Starter Control Panel

Send Inquiry

Request To Call Back

5 HP Three Phase Star Delta Motor Starter Control Panel

Get a Price/Quote

MOQ : 1 Unit

5 HP Three Phase Star Delta Motor Starter Control Panel Specification

Current Rating
5 HP Motor (Approximately 7.5 Amp)

Rated Operation Voltage
415 V AC

Features
Shock Proof, Rust Resistant, Powder Coated, Easy Maintenance

Thickness
1.6 mm

Base Material
Mild Steel Sheet

Cabinet Material
CRCA Sheet

Control System
Automatic/Manual Star Delta Starter

Panel Type
Floor Mounted

Cover Material
Powder Coated Metal

Operating Voltage
415 V AC

Rated Insulation Voltage
690 V

Rated Current
9-12 Amp (Contactor Rating)

Connectivity Type
Hard Wired Terminal

Components
MCB, Star Delta Timer, Contactor, Overload Relay, Control Transformer, Indicator Lamps

Way
Three Phase

Protection Level
IP54

Protection Class
Class I

Cooling System
Natural Air Cooling

Product Type
Three Phase Star Delta Motor Starter Control Panel

Material
Mild Steel (MS)

Surface Finish
Matte Smooth

Standard
IS 13947, IEC 60947

Surface Color
Powder Coated Grey

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
10 Amp

Dimension (L*W*H)
450 x 400 x 250 mm

Application
Industrial Motor Starting and Protection

IP Rating
Ip54

Display Type
LED Indication

Cable Entry
Top/Bottom

Suitable For
All standard 3-phase induction motors up to 5 HP

Mounting Type
Wall/Floor Mountable

Ambient Temperature
-10C to +45C

Busbar Material
Electrolytic Copper

Door Type
Single Door

5 HP Three Phase Star Delta Motor Starter Control Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 5 HP Three Phase Star Delta Motor Starter Control Panel

Experience the elite performance of the 5 HP Three Phase Star Delta Motor Starter Control Panel, meticulously engineered for all standard 3-phase induction motors up to 5 HP. Featuring a magnificent single-door design and manufactured from exceptional mild steel, it boasts favorable reviews for its robust and powder-coated finish. The panel is both wall and floor mountable, ensuring flexibility and convenience. With electro-lytic copper busbars, IP54 protection, and compliance with IS 13947 & IEC 60947 standards, you'll explore reliability and safety, even in ephemeral industrial environments.

Versatile Applications and Advantages

The 5 HP Three Phase Star Delta Motor Starter Control Panel excels in diverse industries, including manufacturing plants, workshops, and large-scale machinery operations. Its shock-proof and rust-resistant construction supports both automatic and manual motor starting, optimizing energy consumption and motor lifespan. Easy maintenance and robust protection make it an ideal choice for continuous process industries, providing exceptional safeguarding for motors and ensuring uninterrupted productivity.

Export Markets, Supply, and Delivery Network

Benefiting clients in both domestic and international markets, this control panel is a sought-after product from India's leading manufacturers, service providers, and suppliers. With dependable supply ability and streamlined freight delivery, customers experience timely goods transport. The panel is recognized for efficient delivery across India and export markets, combining quality craftsmanship with fast dispatch, ensuring your industrial needs are met with reliability and satisfaction.

FAQ's of 5 HP Three Phase Star Delta Motor Starter Control Panel:

Q: How does the 5 HP Three Phase Star Delta Motor Starter Control Panel support different motor applications?

A: This control panel is designed for use with all standard 3-phase induction motors up to 5 HP, making it suitable for a variety of industrial applications such as plants, workshops, and process lines.

Q: What materials and protective features ensure the panel's durability?

A: Constructed with powder-coated mild steel and equipped with IP54 protection and electro-lytic copper busbars, the panel offers excellent resistance to rust, shocks, and harsh industrial environments.

Q: When should you choose a star delta starter over other starting methods?

A: A star delta starter is ideal when you need to reduce the starting current for high-power, three-phase motors, thus protecting the motor and enhancing its lifespan.

Q: Where is the cable entry configured on this panel?

A: The control panel offers flexible cable entry options from both the top and the bottom, catering to varied installation requirements in your setup.

Q: What process ensures the safety and performance of this control panel?

A: Every unit adheres to IS 13947 and IEC 60947 standards, includes components like MCBs, overload relays, and features natural air cooling, ensuring consistent protection and dependable operation.

Q: What are the main benefits users gain from this motor starter panel?

A: Users benefit from automatic and manual operation, easy maintenance, robust construction, and superior operational efficiency, ensuring convenient control and optimal motor protection.
